16.3 megapixel CMOS sensor
High resolution 16.3 megapixel CMOS sensor with integrated AD conversion circuitry captures outstanding image detail with pixels to spare.
Go ahead and feed your photography obsession with the PENTAX K-5. For you, capturing that great shot isn't a casual interest. It's a part of your life. One spectacular image after another. This camera is the perfect piece of equipment to help you get your photo fix. With the compact, rugged K-5, the world is truly your studio.
View Demo
High resolution 16.3 megapixel CMOS sensor with integrated AD conversion circuitry captures outstanding image detail with pixels to spare.
Durable magnesium alloy covers surround a rugged stainless steel chassis.

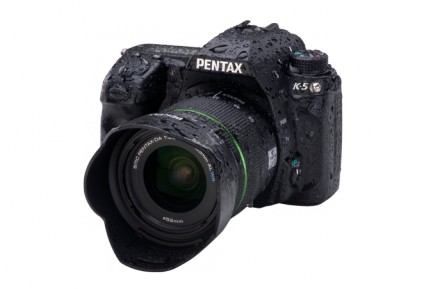

Fully weather sealed and coldproof design resists water, fog, snow, sand, dust, and more, for top performance in extreme field conditions as well as in the studio.
PENTAX body-based Shake Reduction (SR) stabilization system is compatible with every PENTAX lens ever made.
A wide range of in-camera image processing and special effects filters encourages the photographer’s artistic expression.
Speedy 7 FPS framerate captures fast action shots in demanding situations.
Capture widescreen HD video with stunning detail at full 1080p resolution and 25 FPS, including sound via a built-in or external 3.5mm stereo microphone jack.
Highly accurate 77 segment metering system for perfectly exposed images even in difficult lighting.
A maximum 1/8000 second shutter speed freezes even the fastest action without subject movement blur.
Native support for both PENTAX PEF and Adobe DNG 14 bit RAW files, includes the ability to retrieve RAW data from JPG files if still present in buffer memory.
Customizable RAW/Fx button allows for easy access to common shooting settings.
High sensitivity 80-51200 ISO range with improved noise performance throughout, including ISO-specific noise reduction.
Highly responsive and accurate 11 point SAFOX IX+ autofocus system features a dedicated AF assist lamp and light wavelength sensor for improved focus speed and reliability.
Large 3 inch LCD with 921,000 dots of resolution for responsive Live View and detailed image/video review.
High quality glass pentaprism viewfinder features 100% field of view and 0.92X magnification, for perfect framing accuracy.
An HDMI port outputs high definition images and video (and sound) to HDTVs.
Improved in-camera HDR image capture features more blending options and better pixel registration for easier operation without a tripod.
Built-in electronic level now features a tilt scale display in Live View.
Type | DSLR |
Sensor | Type: CMOS w primary color filter and integrated Shake/Dust Reduction sensor movement system Size: 23.7 x 15.7mm Color depth: 8 bits/channel JPG, 14 bits/channel RAW Effective pixels: 16.3 MP Total pixels: 16.9 MP Recorded resolutions Still: 16M (4928x3264), 10M (3936x2624), 6M (3072x2048), 2M (1728x1152) Movie (resolution/FPS): 1920x1080p25, 1280x720p30/25, 640x480p30/25 Quality levels: **** Premium, *** Best, ** Better, * Good Dust Removal: DR II (ultrasonic vibration to low pass filter) with Dust Alert function |
Lens | Type: PENTAX KAF2 bayonet stainless steel mount |
Focus System | Type: SAFOX IX+ TTL phase-difference 11 point (9 cross) wide autofocus system with light wavelength sensor Focus modes: AF Single (w focus lock, focus/shutter priority selectable), AF Continuous (w focus/FPS priority selectable), Manual Focus point adjustment: Auto 11 Point, Auto 5 Point, User-Selectable, Center AF assist: Yes, via dedicated LED AF assist lamp |
Viewfinder | Type: Pentaprism Coverage (field of view): 100% Magnification: 0.92X (w 50mm F1.4 at infinity) Standard focusing screen: Natural-Bright-Matte II (interchangeable) Diopter adjustment: -2.5m to 1.5m Depth of field preview: Optical (diaphragm stop-down), Digital |
LCD Monitor | Type: 3.0” TFT color LCD with brightness/color adjustment and AR coating Resolution: 921,000 dots Wide angle viewable: Yes LIVE VIEW Type: TTL by CMOS image sensor Field Of View: 100% Display Modes: Magnification (2-6X AF, 2-10X MF), Grid Overlay (4x4, Golden Ratio, Scale), Bright/Dark Indication, Histogram Autofocus: Yes, Contrast + Face Detection, Contrast Detection, Phase Difference |

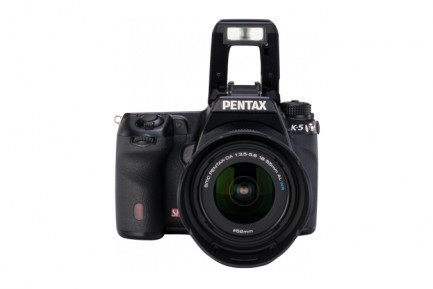

Flash | Type: Retractable P-TTL popup flash Guide number: 13m (ISO 100) Coverage: 28mm wide angle (equiv 35mm) Flash modes: On, Redeye, Slow Sync, Slow Sync + Redeye, Trailing Curtain Sync, Wireless Flash exposure compensation: -2 to 1 EV (1/2 steps) |
External Flash | Type: Hotshoe (P-TTL), high speed sync and wireless w PENTAX dedicated flash, X-Sync Socket Synchronization speed: 1/180 sec |
Storage Media | Internal memory: n/a Removable memory: SD, SDHC, SDXC (via firmware update) |
Interfaces | Ports: USB 2.0 hi-speed, AV out, HDMI out, DC in, cable switch, 3.5mm stereo microphone, X-sync socket Video out: HD (via HDMI), NTSC, PAL Printer interfaces: n/a |

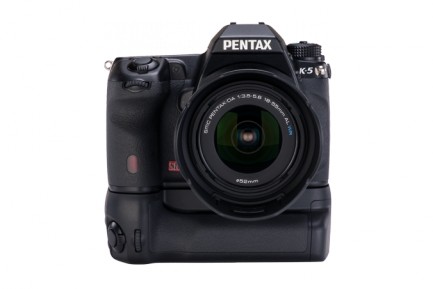

Power Supply | Power source: Rechargeable Li-Ion battery D-LI90, D-BG4 Battery Grip (optional) for 2nd D-LI90 battery or 6X AA batteries Recordable images: Approx 980 (approx 740 w 50% flash, CIPA) Playback time: Approx 440 min Movie recording time: Approx 25 min (automatic overheat shutdown protection) AC adapter available: Yes (optional) |
Physical Specs | Body dimensions (W x H x D): 5.2 x 3.8 x 2.9” Body weight Without battery or removable memory: 23.3 oz Loaded and ready: 26.1 oz Construction material(s): Magnesium alloy shell over stainless steel chassis Weather resistant: Yes (77 weather protection seals) Operating temperature: 14-104°F (-10 to 40°C) |
Language Support | English, French, German, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Russian, Korean, Chinese (Simplified/Traditional), Japanese |
Image Stabilization | Type: Sensor-Shift Shake Reduction with rotational compensation (4 stops max) Electronic level function: Yes, verification via viewfinder and LCD panel |
Metering System | Type: TTL open-aperture 77 segment metering Sensitivity range: EV 0 to 22 (ISO 100, 50mm F1.4) Multi-segment: Yes (77 segments) Center weighted: Yes Spot: Yes Exposure compensation: +/- 5 EV (1/3 and 1/2 steps) Exposure lock: Yes Exposure bracketing: Yes (2, 3, or 5 frames, up to +/- 2 EV in 1/3 or 1/2 steps) |
ISO Sensitivity | Auto: ISO 100-12800 (1, 1/2, 1/3 steps), expandable to ISO 80-51200, Bulb mode up to ISO 1600, auto ISO range selectable Manual: 100-12800 (1, 1/2, 1/3 steps), expandable to ISO 80-51200, Bulb mode up to ISO 1600 |
White Balance | Auto preset modes: Auto, Daylight, Shade, Cloudy, Fluorescent (D, N, W, L), Tungsten, Flash, CTE Manual mode(s): Yes, 3 manual and 3 Kelvin temperature presets available, copy WB settings from a captured image available * WB fine adjustment available in all modes |
Shutter | Type: Electronically controlled, vertical-run, focal plane shutter Shutter speed: 1/8000 to 30 sec (1/3 or 1/2 steps), Bulb |
Capture Modes | Mode selection: Green, Hyper Program (P), Sensitivity Priority (Sv), Shutter Priority (Tv), Aperture Priority (Av), Shutter & Aperture Priority (TAv), Metered Manual, Bulb, X-Speed, USER (5 presets), Movie Custom Image Modes: Bright, Natural, Portrait, Landscape, Vibrant, Muted, Monochrome, Reversal Film, Bleach Bypass - All include gamut radar and fine adjustment of saturation, hue, high/low key, contrast, and sharpness (regular and fine adjustment scales). Monochrome mode includes adjustments for filter effects (green, yellow, orange, red, magenta, blue, cyan, infrared), toning (sepia, warm/cool), high/low key, contrast, and sharpness (regular and fine adjustment scales). Green simplified mode available: Yes P/A/S/M/B: P, A, S, M, B (extended modes Sv, TAv) Date stamp: n/a Digital filters (capture): Toy Camera, Retro, High Contrast, Extract Color, Soft, Starburst, Fisheye, Custom Data record: Folder name (standard, date), file name (standard, customizable), embed copyright |
Drive Modes | Mode selection: Single, Continuous (Hi, Lo), Self-Timer (12s, 2s), Remote (0s, 3s, continuous), Auto Bracketing (standard, timer, remote), MLU (standard, remote), HDR Capture (+3, 0, -3 with 5 blend settings and pixel alignment), Multi-Exposure (2-9 shots), Interval (999 shots, 1 sec to 24 hrs, time delay available) Continuous FPS - Continuous Hi: 7.0 FPS (22 JPG, 8 RAW) - Continuous Lo: 2.0 FPS (unlimited JPG, 12 RAW) Self-timer: Yes (12s, 2s) Remote control: Yes, infrared (0s, 3s, continuous), cable switch |
Playback Modes | Mode selection: One Shot (no data, basic data, full data, color channel histogram, bright/dark indication, copyright info), Multi Image Display (4, 9, 16, 36, 81 thumbnails), Calendar Filmstrip, Folder, Magnification, Select & Delete, Movie Playback (no data, basic data, full data), Save RAW Data From JPG (if available in buffer memory) Mode pallet: Image Rotation, Digital Filter, Resize, Cropping, Slideshow, Save as Manual WB, RAW Development, Index Print, Image Comparison, Protect, DPOF, Movie Edit, Extract JPG from Movie Magnification: Up to 32X, scrollable, quick magnification) Digital filters (playback): Toy Camera, Monochrome (filter, toning), Retro, Color, High Contrast, Soft, Extract Color, Starburst, Sketch, Watercolor, Fisheye, Pastel, Slim, Miniature, HDR, Posterization, Base Parameter Adj, Custom |
File Formats | Still: RAW (PEF, DNG), JPG (EXIF 2.21), DCF 2.0 compliant, DPOF, PIM III Movie (compression): AVI (Motion JPG) |
Custom Functions | Functions available: 27 |
Computer Requirements | Windows: Windows XP/Vista/7, USB 2.0 port Mac: MacOS-X 10.3-10.6, USB 2.0 port |
